Ultrasonic weld corrosion detector MANTIS
M2M Mantis™ is a robust and lightweight flaw detector offering UT, PAUT, TOFD and TFM via the simplified Capture™ user interface. Based on a 16:64PR architecture with three different models, Mantis meets general and advanced applications without compromising productivity.
Powerful integrated Capture software, with advanced analysis tools (automatic sizing, 3D data display, stitching)
Ideal for quick setup, inspection, analysis and reporting, covering your entire inspection task
RMS Control ready (motorized scanner) PC versions available for configuration and data analysis file compatibility with those obtained with the Gekko Connectivity for remote assistance or remote inspection (Wi-Fi™, USB 3.0 and Gigabit Ethernet)
Avantages
- Boîtier robuste et portable renforcé conçu pour IP65
- Compact et léger pour une utilisation facile
- Technologie d'écran tactile résistif (compatible avec les gants, non sensible à la poussière / l'eau)
- Capacité de stockage élevée - SSD de 128 Go
- Connecteurs d'encodeur IPEX PA, LEMO-00 UT et LEMO-16
- Adaptateur Easy Latch intégré disponible
Vidéo
Spécifications

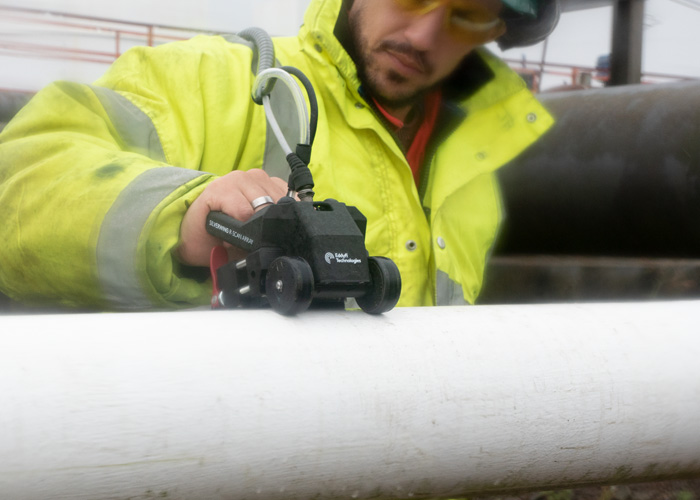

R-Scan Array – Semi-automated corrosion mapping solution
The R-Scan Array system is the perfect solution for inspecting complex geometric components, including curved surfaces, flat plates, pipelines and restricted access areas. The versatile battery-operated, semi-automated Phased Array (PA) corrosion mapping solution with built-in data collection capabilities provides enhanced inspection dexterity and accuracy.

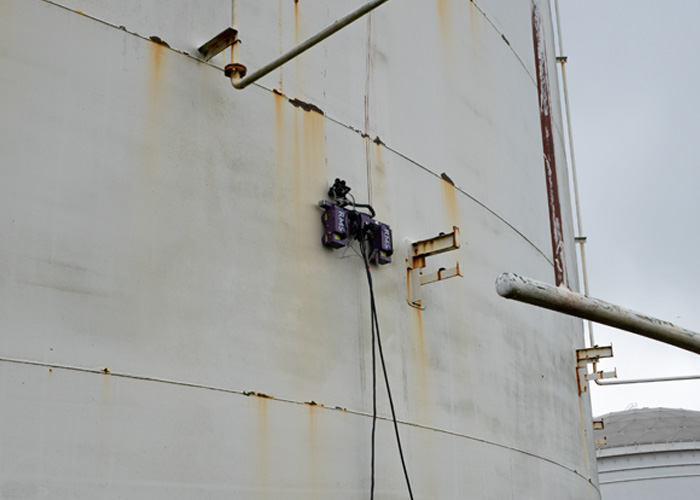

RMS PA – Automated Corrosion Mapping Solution
RMS PA and Mantis to provide high speed remote access phased array ultrasonic inspection system. It is designed to assess the condition of storage tanks, pipelines, pressure vessels and other critical equipment. It integrates well into inspection programs supporting integrity management processes, ensuring efficient and reliable operation.

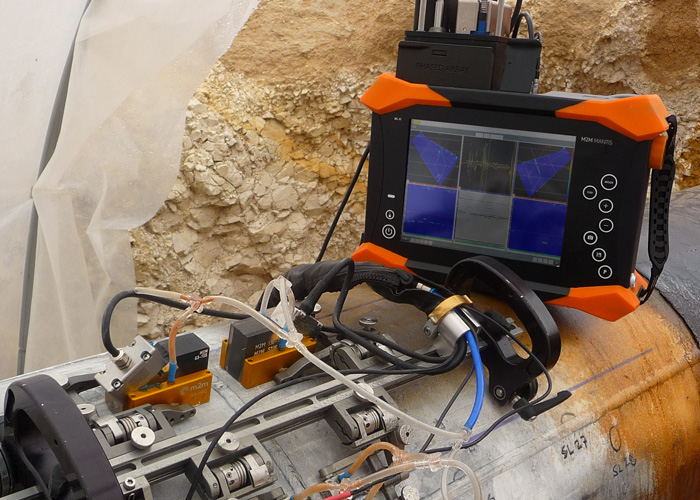

Weld inspection with PAUT and TOFD
Mantis can perform weld inspection of simple and complex geometric components, including curved surfaces, flat plates, pipelines and restricted areas. Importing custom CAD overlay simplifies analysis and can reduce false alarms.
Dimensions
311 × 220 × 95 mm
Weight
4,2 kg (with battery)
Autonomy
4h (hot-swappable battery)
Display
8.4-inch high-contrast resistive display
Resolution
1024 × 768 px
Storage space
SSD de 128 Go
IP Rating
IP65
Operating temperature range with battery
-10 ° C à 45 ° C
Storage temperature range with battery
-10 ° C à 60 ° C
Impact resistance
According to MIL-STD-810G 1
