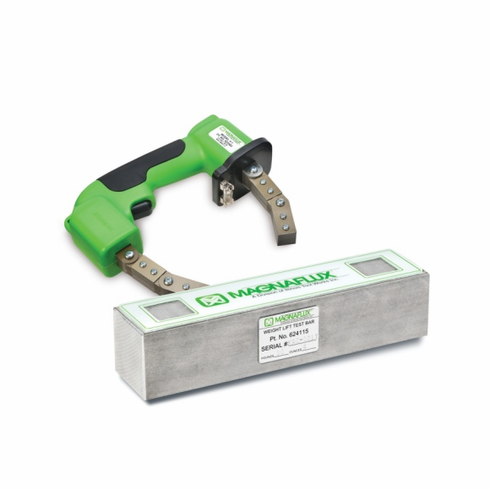

DC Yoke Magnaflux Y-8 electromagnet kit
The Magnaflux Y-8 DC electromagnet is a battery-powered yoke designed to withstand the most aggressive applications.
True portability for on-site inspection and remote locations with a compact battery pack providing a full 8 hours of inspection power.
Features
- Resistant to chemicals and abrasion
- Exceeds ASTM lifting specifications
- Double articulating arms
- Sealed, durable, lightweight construction
- True portability with compact battery pack
- Semiconductor controls for maximum safety and reliability
Avantages
- Durable, sealed construction
- Chemical and abrasion resistant
- Exceeds ASTM lifting specifications
- Individual serial number on each electromagnet
- Double-jointed arms
- Degaussing capacity
- AC and DC operating options for surface and subsurface inspection
- Avoid dust and dangerous water damage with an IP54 O-ring sealed enclosure.
Spécifications
Features
Waveforms
DC
Arm spacing
5,1 - 27,9 cm
Arm contact size
25,4 x 25,4 mm
Cord length
1,8 m
Duty cycle
25%, maximum duration 90 seconds
Lifting force spacing 100 to 150 mm
22.7 kg
Magnetic field
2.5 kA/m at 152 mm spacing
Dimensions
190 x 51 x 254 mm
Weight
- Yoke: 3.6 kg
- Battery: 2.4 kg
Degree of protection (IEC 60529)
IP 54
Earthing (IEC 60529)
Complies with IEC 61010-1 earthing requirements
Electric
6 DC, 4 A max
Environment
0-49°C, up to 100% RH non-condensing, up to 5,000 m altitude
Regulatory
Designed for mains +/- 10y%, overvoltage category II, wet locations, pollution degree 2 environment
Complies with standards
ASME Boiler and Pressure Vessel Code Section V, Article 7
ASTM E709
ASTM E1444
ASTM E3024
EN-ISO 9934-3
Applications
Fault location Ideal for
- Field testing
- Hard-to-reach areas
- Spot inspections
- In-service inspections
- Inspection of welds
- Examples of defects:
- Seams
- Tears
- Shrinkage cracks
- Grinding cracks
- Hardening cracks
- Fatigue cracks
Recommendations for users
Méthode CND
Magnetic particle testing
Optional accessories

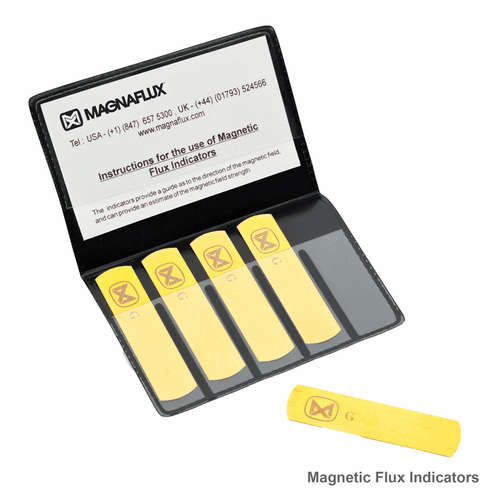

Magnetic indicator strips
Serial number : (MT_MX_US_008M004)
Poids de test certifié
Part number : MT_MX_US_624115
