AMIGO 2 ACFM surface defect detector
In its 30-year history, ACFM® technology has established a solid reputation for the accurate detection and sizing of surface failure cracks in paint and coatings. The original Amigo® ACFM instrument has earned a reputation for robustness, reliability and ease of use. As the industry demands higher performance in terms of throughput, signal quality and portability, the time has come to evolve. It's time for Amigo 2.
Avantages
- Precise dimensioning of surface cracks
- Inspecting through paint and coatings
- Less cleaning than other methods
- Up to 10 times faster than the first generation
- Up to 10 times faster than the first generation
Vidéo
Spécifications
Applications
- Weld inspection: standard probes and single-pass matrix probes
- Single or two-person operation (e.g. confined spaces)
- High temperature applications
- Inspection through thick coatings
- Wire inspection
- Spatter inspection
Benefits
- Precise dimensioning of surface cracks
- Inspect through paint and coatings
- Less cleaning than other methods
- Up to 10 times faster than first generation
- Support for legacy probes
- New SENSU 2 probes for high-speed applications
Faster inspections and better data
Amigo 2 is designed around a highly advanced signal acquisition and processing system, capable of processing data much faster than the original Amigo, for a data range 14 times greater. This gives you smoother, higher resolution indications that increase the detectability of small defects and the coating thickness through which you can inspect.
Portable unit with on-board and remote software
Amigo 2 is a standalone unit that integrates electronics, a multi-touch display and storage in a robust casing. This removes the need for a remote computer and cables, improving portability. Of course, those of you who still want to use a remote computer still can.
A new evolution platform

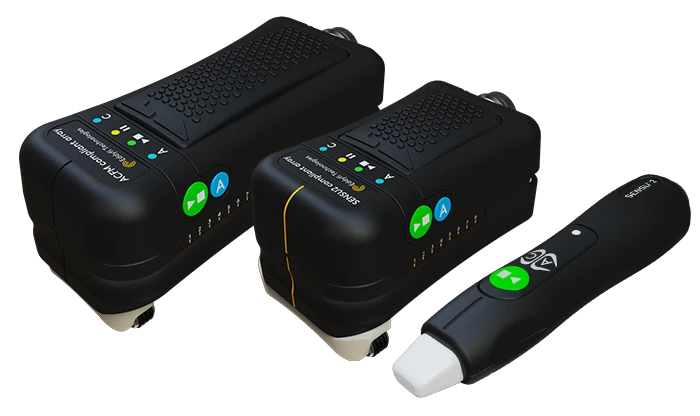

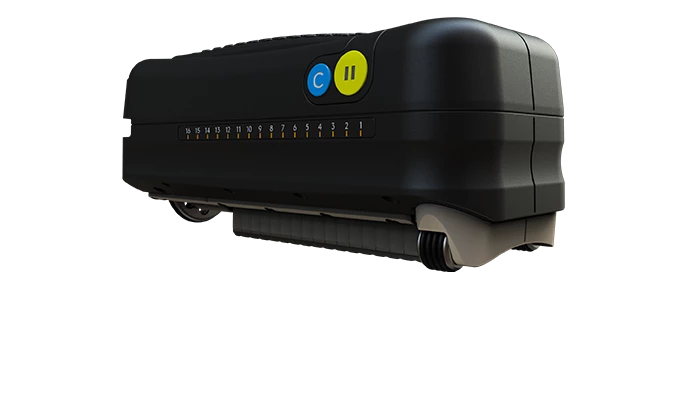

Amigo 2 features a SENSU® 2 connector for use with a new generation of ACFM, manual and matrix probes. The SENSU 2 connector supports up to eight digital inputs for high-speed applications. Together, Amigo 2 and its Assist software are fully designed and ready to support the evolution of ACFM probes.
Downward compatibility with Amigo and Pace probes
Amigo 2 is equipped with a connector that supports the use of all Amigo probes (standard matrix and manual probes), simply by importing the corresponding QPC files. Pace® pencil probes are also supported via a dedicated SENSU connector. What's more, you can connect multiple probes to Amigo 2 at the same time, quickly switching between them in the software.

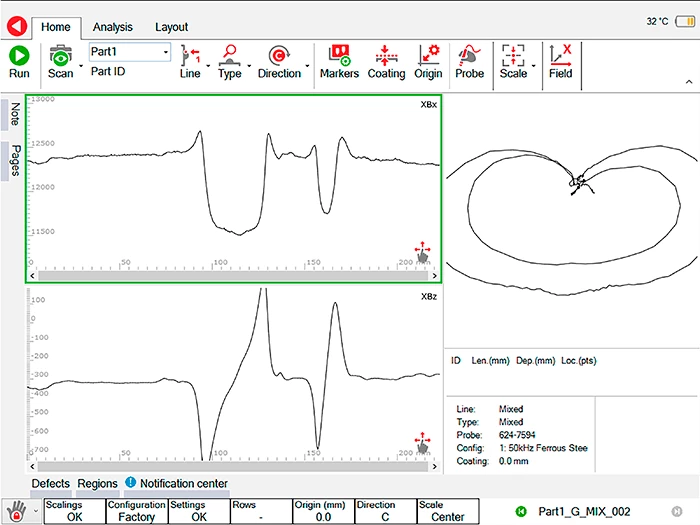

The essence of the ACFM: Assist
Experienced ACFM operators will immediately feel at ease - the familiar Bx/Bz traces and butterfly taking centre stage on the Amigo 2 screen - while the multi-touch interface provides highly intuitive ribbon access to all the software's functions.
Dimensions
355 × 288 × 127 mm
Instrument weight
6,6 kg
The volume
13 L
Power requirements
100–240 VCA
Power source
Direct or on-board VAC batteries
Batteries
Type
Li-ion, rechargeable, DOT compatible
Typical service life
6 à 8 heures
Video output
HDMI
Display
26.4 cm
Multitouch
Non-reflective (AR coating)
Anti-fingerprint (oleophobic coating)
3 mm chemically strengthened glass
LCD and touch screen optically linked
Improved passive backlighting
Connectivity
Ethernet Gigabit, Wi-Fi™, Bluetooth®, USB 2.0 (× 3)
Storage space
SSD, 100 Go
Cooling
sealed and fanless
Sensor inputs
SENSU, SENSU 2, Amigo
Frequency
5 kHz et 50 kHz
Data resolution
16 bits
Comparison of Amigo models
AMIGO2 | AMIGO2 SE |
Faster acquisition speed (2 to 8 digital inputs)
| Faster acquisition speed (2 digital inputs) |
Amigo sensor connectors, sensu1 (rhythm) and sensu2
| Connecteurs de sonde Amigo, sensu1 (rythme) et sensu2 |
Integrated high-speed matrix
| Single element probes only |
Sensor configurations stored directly on the sensor (SENSU1 or SENSU2)
| Configurations de la sonde stockées directement sur la sonde (SENSU1 ou SENSU2) |
Fréquence double/multiple
| Dual / Multiple Frequency |
Integrated (touch screen) or RDAU (laptop). New intuitive Assist software in continuous development
| IIntegrated (touch screen) or RDAU (laptop). New, intuitive Assist software |
2 × encoder inputs - via probe or external IO connector. Supports 3BZ crack sizing technology | 2 × encoder inputs - via probe or external IO connector |
Array probes are not supported by the Amigo2 SE
