Corrosion mapping of pipelines using MFL SWIFT M
With its large 26.4 cm non-reflective multitouch screen, the Silverwing Swift-M offers crystal-clear views in any lighting conditions.
The instrument is sealed and designed to IP65 standards. Its magnesium alloy housing is sturdy, water-resistant, and dustproof. Combined with 3 mm reinforced glass.
The Silverwing Swift-M is ideal for challenging environments.
The Silverwing Swift-M comes with two hot-swappable lithium-ion batteries, allowing for a full day of work.
An optional harness is also available to support extended system usage.
The adjustable rear stand, top handle, and four anchor points at the corners make the Silverwing Swift-M extremely convenient for on-site inspections.
Avantages
- Easy to use with minimal training required
- Rapid and reliable detection and mapping of corrosion in pipes and small vessels
- Flexible heads adapt to the full range of tube and pipe sizes
- High probability of corrosion detection (PoD)
- Detection of Ø> 1 mm and 20% wall loss
- In-service inspection at surface temperatures of up to 60°C
- Full data logging with adjustable report threshold function
Vidéo
Spécifications

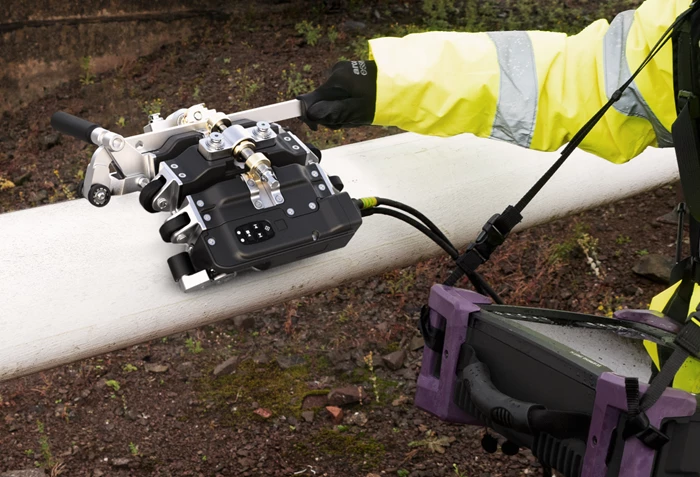

Pipescan HD
The Pipescan HD is the highest resolution MFL scanner on the market. With a high probability of detection (PoD), the Pipescan HD is an effective and reliable pipe inspection solution for corrosion and pitting detection.
Pipescan deployment is easy with the unique bend adjustment tool for quick inspection set-up. No complicated coupler or gate settings are required, just connect the Pipescan to the data acquisition instrument, enter the inspection details and the system is ready to go.
MFL is a fast, reliable and robust corrosion filtering technique that detects the volume of magnetic material missing from a component undergoing inspection.
MFL requires limited surface preparation and no couplant is needed. Users require minimal training and, with scanning speeds of up to 1 m/s, MFL is the ideal solution for fast, cost-effective corrosion detection.

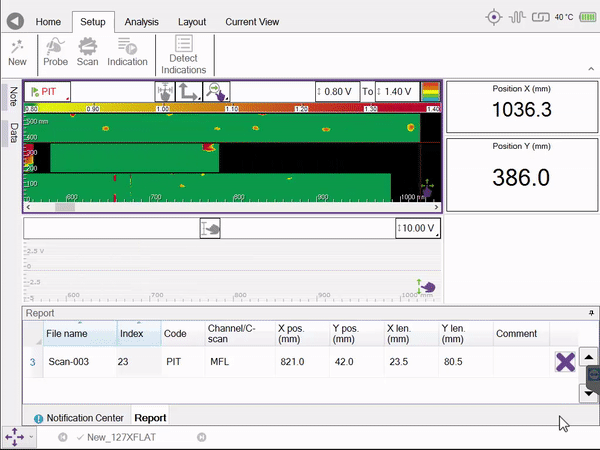

Adjustable reporting threshold
With the aim of a quick and easy-to-use solution, Swift-M software has retained the adjustable reporting threshold function, allowing the user to report only on what is relevant to the scope of work. Unlike the previous electronic module, the reporting threshold can be adjusted after inspection due to data logging.
Report as you go
The Swift-M one-click reporting tool is designed to improve the overall workflow from inspection to reporting. Defects can be analysed at any time, at the end of an analysis or at the end of a job. Once the analysis is complete, simply select generate a report, then transfer it to a USB stick for distribution.
Dimensions
355 × 288 × 127 mm
Weight
With batteries: 6.6 kg
Without batteries: 5.7 kg
Volume
13L
Power requirements
100-240 VCA, 50-60 Hz
Current source
Direct or on-board VAC batteries
Battery
typical life 6-8 hours
Display
26.4 cm
Non-reflective (AR coating)
Anti-fingerprint (oleophobic coating)
3 mm, reinforced glass cover
LCD and touchscreen optically linked
Storage room
SSD, 100 Go
Connectivity
Ethernet Gigabit, Wi-Fi™, Bluetooth®, USB 2.0 (× 3)
IP rating
IP65
Operating temperature
0–40 °C
Operating humidity
95 %, non-condensing
Pipescan HD
