Inspection of pipes and surface networks ECTANE 3
With over a thousand units deployed in the field, the Ectane 3 has enabled advanced electromagnetic inspections worldwide for over a decade. The third-generation unit is certified IP65 and supports tenth-generation technology, Remote-Field Array (RFA), for advanced tube inspections.
The undisputed reference for advanced testing of heat exchanger tubes and surface eddy current arrays, Ectane® 3 brings the power of Remote-Field Array (RFA) technology to ferrous heat exchanger inspections.
Truly a triple threat, Ectane 3 and Magnifi® software version 5.1 support the new RFA probe family, offering high-resolution C-scan imaging at remote test inspection speeds. With increased data coverage near external features, improved defect detection probability, and better defect morphology, you have exactly what it takes to make the call with confidence.
The best technology to show the true colors of your heat exchanger.
Remote-Field Array (RFA)

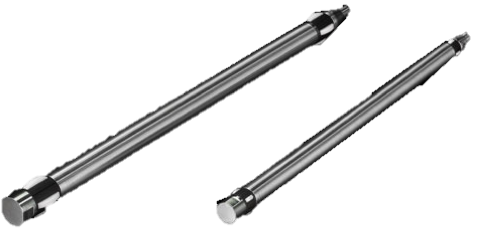

The new RFA probe family enhances inspection and analysis performance by adding high-resolution C-scan and increased data coverage closer than ever to external features. The RFA probe design combines a high-density coil array with conventional coils featuring two drivers. Every detail has been taken into account, evident with new centering devices located at both ends of the probe to maintain constant liftoff and provide better signal response quality.
Ectane sets the standard for advanced electromagnetic tube and surface inspections. Offering a wide range of frequencies from 5 Hz to 10 MHz, eight channel inputs, and up to 32 time intervals, the instrument can tackle a wide range of applications. Modular in design, the 11 models of Ectane 3 are scalable and can be retrofitted to meet your inspection needs. The unit is available in three different array configurations: 64, 128, or 256 elements with support for 10 technologies.
Avantages
- RFA the latest advanced technological addition
- 10 technologies in a single instrument
- Integrated SmartMUXTM multiplexer for multi-element far-field inspections
- Portable and robust design
- IP65-rated, offering resistance to dust and water
- Battery-powered, 8-hour runtime
Vidéo
Spécifications

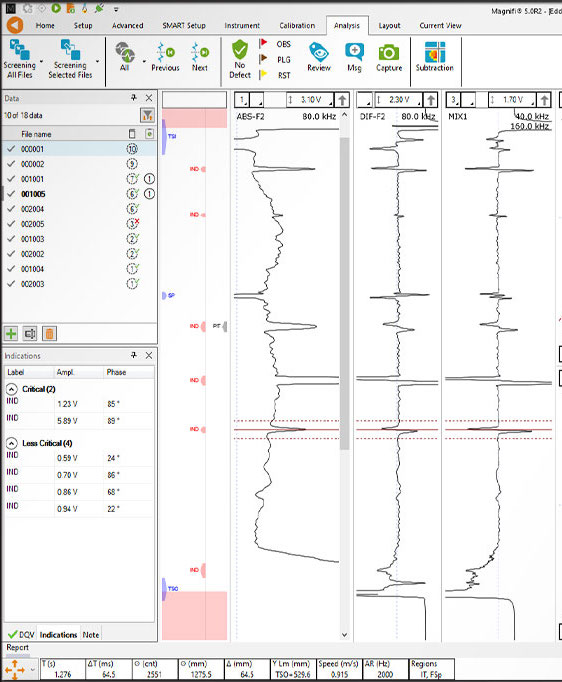

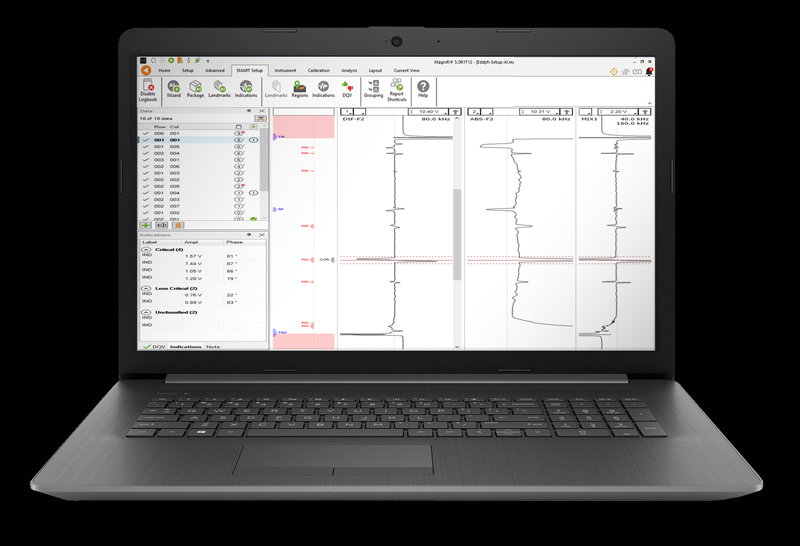

High-resolution C-scan imaging provides better information on defect morphology. Magnifi 5 Version 5.1 of Magnifi software incorporates dedicated tools for RFA inspections, including, but not limited to, a step-by-step configuration wizard for probes, dedicated calibration tools for linking conventional and C-scan signals, and support for impedance and voltage plane display for ABS channels. In addition, it incorporates the AI-ECT 2.0 module for ECT detection of defects under support plates.
CHigh-resolution C-scan imaging provides better information on defect morphology.
Leave no big defect behind with patent-pending AI detection offering instant peer review, any time of day, for ECT coil inspections.
INSTRUMENT
Dimensions
279,6 × 254,0 × 158,8 mm
Weight
With batteries 6.8 kg
Without batteries 5.9 kg
Volume
10 L
Power supply requirements
100–240 VCA, 50–60 Hz
Power supply
Direct AC or integrated batteries
Batteries
Taper Li-ion, rechargeable, DOT-compliant Typical life: 8 hours
IP index
IP65
Cooling
Sealed and fanless
Encoders
3-axis, quadrature with individual reset line
Remote controls
Start, stop, balance, next file and more
Connectivity
1000 BASE-T
Sensor recognition and configuration
Automatic for Surface Array probes
Operating temperature
0–45 °C
operating humidity
95 %, non-condensing
Compliance
EN 61010-1, CE, FCC Partie 15B,
ICES-003, AS/NZS, CISPR 22,
RoHS, ASME
Sensor inputs
4 - 8
Channels
64, 128 ou 256
Frequency range
5 Hz–10 MHz
Generator output/Coil drive
Jusqu'à 20 Vpp
CURRENT SOURCE FOR SATURATION PROBES
Interval
0–1 A
Maximum output power
10W
Maximum output voltage
15V
MOTOR DRIVE FOR RPC PROBES
Voltage
0–24 V
Maximum peak output current
2 A
Max continuous output current 2
1 A
Maximum continuous power
10W
ECT
Frequencies
Up to 160
Number of generators/coil drivers
2
Injection modes
Simultané et continu
Receiver gains
41 dB range, 23-64 dB
Data resolution
16 bits
Acquisition/sampling rate
Up to 50,000 samples/s
RFT ET NFT
Frequencies
5
Number of generators/coil drivers
2
Receiver gains
range of 50 dB, 26–86 dB
MFL
Receiver gains
41 dB range, 18-59 dB
IRIS UT
Channels
1, pulse-echo
Internal transmitter/receiver
Dimmer 0-200
V 0-70 dB (1 dB steps)
0-40 dB DAC
Filters
4 user-selectable filters
25 MHz system bandwidth
Transducer frequency
5–20 MHz
Scanner
12 bits, 100 MHz
Maximum pulse frequency
Up to 26 kHz
Types scane
Scans A, B et C in real time
Turbine speed
Up to 100 RPS
ECA, TECA, NFA
Connector
Single or dual 160-pin matrix
Multiplexer
SmartMUX
RFA
Frequencies
5 Hz à 2 kHz
Number of generators/coil drivers
2
Receiver gains
Range of 41 dB, 23–64 dB
Connecteur
Connecteur 41 broches
